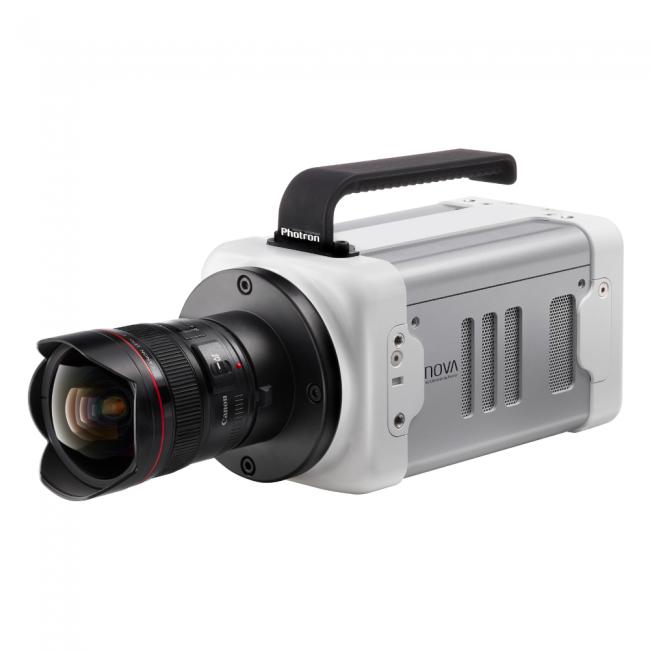

FASTCAM Nova Model R2

The FASTCAM NOVA R2 brings together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a camera with the flexibility to be used in a wide variety of applications. The FASTCAM NOVA R2 offers 12-bit image recording rates up to 1'440 fps at 4-megapixel image resolution, and shutter speeds to 2.7us. Recording rates up to 100'000 fps are available at reduced image resolutions.

Overview:
Standard features of the FASTCAM NOVA R2 include an internal mechanical shutter to allow remote system calibration, a high-performance 10-Gigabit Ethernet interface for camera control and high-speed image download, memory segmentation that allows recording into one memory partition while downloading from another, and compatibility with a number of industry standard lens formats to allow the use of Nikon G-Type, C-mount and Canon EF lenses.

The FASTCAM NOVA R2 also features a “sealed body” design that prevents dust and corrosive particles from contaminating sensitive electronics. An optional FAST Drive SSD can be used for the download of images at up to 1GB per second.

Intuitive and feature rich Photron FASTCAM Viewer (PFV) software is included with each FASTCAM NOVA R2 camera. Also included is a Photron Device Control SDK that allows integration of the camera with user-specific software, and libraries for controlling the camera within a MATLAB or LabView environment.

Specs:
4-Megapixel CMOS Image Sensor:
2'048 x 2'048 pixels at 1'440 fps
1'920 x 1'080 pixels at 2'560 fps

Maximum Frame Rate:
1'000'000 fps (Model R2 type 100K)

Class Leading Light Sensitivity:
ISO 2'500 color

Global Electronic Shutter:
1ms to 2.7μs independent of frame rate

Dynamic Range (ADC):
36-bit color

Compact and Lightweight:
120 mm (H) x 120 mm (W) x 217.2 mm (D)
4.72” (H) x 4.72” (W) x 8.55” (D)

Weight:
3.5Kg (7.7 lbs.)

Internal Recording Memory:
8GB, 16GB, 32GB, 68GB, 128GB

Optional FAST Drive Removable High Capacity Data Storage:
4TB High-speed Solid State Drive
